4D-ICE
High-Resolution Real-Time 3D Cardiac Imaging

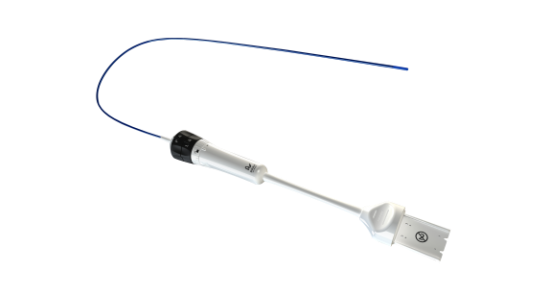

4D-ICE is an advanced intracardiac imaging technology that uses a high-density transducer to capture real-time 3D images of the heart. It clearly shows heart structures, motion, and blood flow, offering full imaging guidance for procedures and bringing cardiac intervention into a new era of precision and visualization.
4D-ICE
High-Resolution Real-Time 3D Cardiac Imaging
4D-ICE is an advanced intracardiac imaging technology that uses a high-density transducer to capture real-time 3D images of the heart. It clearly shows heart structures, motion, and blood flow, offering full imaging guidance for procedures and bringing cardiac intervention into a new era of precision and visualization.
-
·Real-Time 3D Imaging: Synchronously displays the heart's 3D structure along with the time dimension, allowing intuitive observation of valve movement and blood flow.
·Precision Intervention Guidance: High-resolution 3D imaging facilitates accurate catheter positioning while reducing reliance on X-ray.
·High-Definition Image Quality: Advanced ultrasound transducer technology delivers clearer anatomical detail visualization.
·Multi-Procedure Support: Compatible with AF ablation, TAVI and other complex interventions to optimize workflow efficiency.
- A. Sharma, et al, “4D Intracardiac Echocardiography-Guided LA Appendage Closure Under Conscious Sedation: Initial Experience and Procedural Technique”, J Am Coll Cardiol Img. vol. 14, no. 11, pp. 2254–9, Nov 2021.
- H. L. Gilbert, et al, “4-Dimensional Intracardiac Echocardiography in Transcatheter Tricuspid Valve Repair With the MitraClip System”, J Am Coll Cardiol Img., vol. 13, no. 7, pp. 1591-1600, Jul 2020.
- R. M. Kaplan, et al. Use of a Novel 4D Intracardiac Echocardiography Catheterto Guide Interventional Electrophysiology Procedures. J Cardiovasc Electrophysiol. vol. 32, pp. 3117‐24, 2021.
